2021-07-24

Olympus X-44 compact camera

Compact camera bought in 2011, with 14MP sensor, 5x optical zoom, powered by two AA cells.

Failed in 2021 (though occasionally failing same way year later, so it was not instantaneous), making all photos very overexposed, almost all white. This is pretty much sure sign of shutter failure - either mechanically stuck or not working due to broken flex cable. I've disassembled it hoping for the first case.

Outer shell is pretty easy to open, with no latches, but different screw sizes might need attention when reassembling.


Main chip: NOVATEK NT96450BG

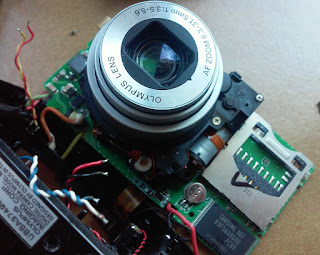

"First layer" of lens module: focus lens driven by small motor.
Shutter module with two electromagnets. Held by latches.
Opening lens from the front was a mistake - it was not needed.
Reason of failure: broken flex tape. While replacement tape is available at reasonable price (~$5), I've given up at the moment. My lack of experience with cameras made reassembling it more difficult than it should be.
