2018-05-27
Eurit 133 ISDN/DECT base station
No screws, easy to open with flat screwdriver
Gold-plated PCB, no screws and very nice build quality.
SC14425 from National Semiconductors - Complete Baseband processor for DECT Base Stations with Caller-id and Handsfree
TDA7052B - 1W audio amplifier with DC volume control
Infineon PSB2186N - ISDN 2B+D interface
Two radio antennas
2018-05-26

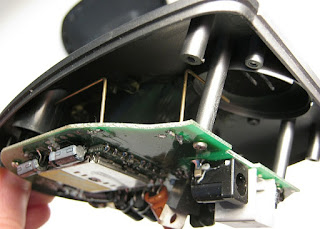

DECT base station
Base station for cordless (DECT) phone.
RU1890B DECT radio module.
SST37VF010 - 1Mbit NOR FLASH. There is also 24C64 EEPROM.
Two radio antennas
Under small copper shield/radiator - IC-397004B, seems to be specialized controller.
RU1890B DECT radio module.
SST37VF010 - 1Mbit NOR FLASH. There is also 24C64 EEPROM.
Two radio antennas
Under small copper shield/radiator - IC-397004B, seems to be specialized controller.
"Analytical" weight scale
Buttons are actually mechanical and located on the side.
I was thinking that this weight scale uses some kind of frequency/impedance analysis, but it seems to me now that it actually measures only weight. Body components percentage is just guess, based on entered height/gender/age (there are 12 memory cells for personal data). Metal strips on the top are not even connected to anything, just attached to glass with double sided tape. Also, percentage measurements does not change regardless of if I'm stepping on it with bare foot or in (isolating) shoes.
As metal strips have no function, I've removed them. This leaves glass plate flat and thus easier to clean.
In conclusion - if you are looking for real analytical weight scale, don't buy this one.
2018-05-13
Harman Kardon HK206 PC speakers
Volume control is integrated with ON/OFF switch. I'm not sure if this switch is working as intended here as is it works really weird. |
According to label speakers are manufactured by Samsung, although there is Dell mark on the PCB |
HII owns also Becker, JBL, Crown, dbx, DigiTech, Martin, AKG, Lexicon, Infinity, Mark Levinson, Revel, Arcam, BSS Audio - this is really small world.
Samsung 08G11ARH 4Ohm 3W speakers |
TDA1517P power amplifier + LM324 |
"DELL 2.0" mark on the PCB + 2002.01.22 |
